Control cabinet engineering made easy thanks to CAE interfaces
Increasing energy efficiency in your engineering process: Our EPLAN interface makes digitizing your engineering process very simple, whether you export the terminal strips you need directly to our online configurator or just pass the existing marking data on to our WAGO Smart Printer. With WAGO, you’ll find the right solution.
As a plug-in for EPLAN Electric P8, including EPLAN Pro Panel (Version 1.4.x), the new interfaces now allow direct data transfer from EPLAN Pro Panel, simplifying the entire process, all the way to ordering.
The advantages at a glance:
- Data consistency along the entire value chain
- Data can be reused without media discontinuity
- Time and cost savings
Connector
WAGO Online Configurator Smart Designer
The basis of any switchgear unit is customized electrical planning. WAGO consistently offers you all the data, software tools and interfaces – from electrical and mechanical planning, to ordering.

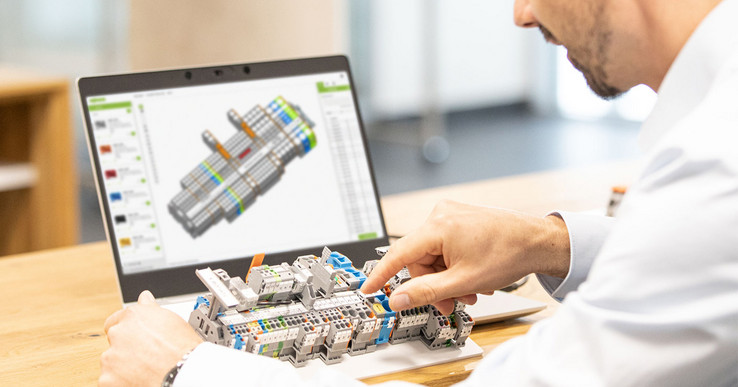

With the Smart Designer online configurator, the software for WAGO’s electrical connection and automation technology products, we offer access to projects at any time and from anywhere in the world – no installation necessary.
- Interfaces to several CAE tools (e.g., ePLAN or WSCAD) allow planned terminal strips to be created automatically in the Smart Designer configurator
- Realistic planning of WAGO products in 3D
- Always available, always up-to-date: access to projects at any time and from anywhere in the world – no installation necessary
- Plausibility check helps prevent planning errors
